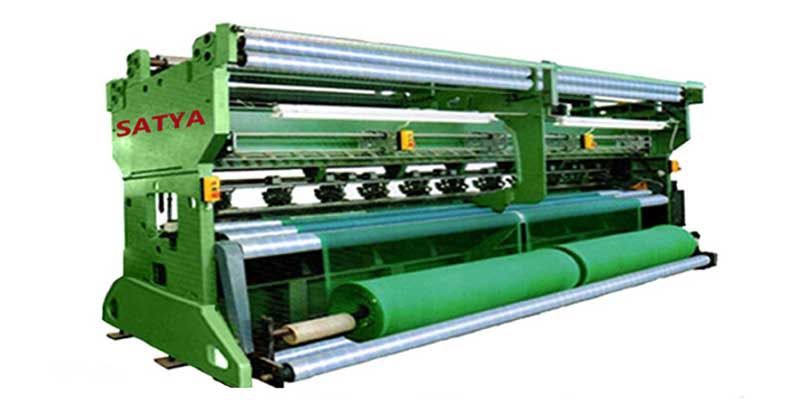

Agro Shade Net Machine
High-Speed Raschel Warp Knitting Technology for manufacturing premium HDPE Green Nets and Agro Shade Nets. Start your highly profitable plant today.
Start Your Manufacturing Plant
The demand for agriculture shade nets, green nets, and construction safety nets is skyrocketing globally due to climate change and increasing infrastructural development.
Investing in an HDPE shade net machine is one of the most profitable manufacturing business ideas today. We guide you through raw material sourcing, installation, operator training, and marketing.
Turnkey Project Setup
Backed by our exclusive Lifetime Service APC to keep your plant running 24/7 without breakdown.
Get Plant Setup Cost & Quote
600
Max RPM
4300
Max Width (mm)
300+
Kg / Day Output
95%
Shade Density
Why Invest in a Green Net Manufacturing Plant?
High ROI
With our high-speed output (up to 300 kg per day), you can easily recover your machine cost within the first year of operation.
Global Export Demand
Agro nets manufactured on Satya Group machines meet international standards, allowing you to export to Africa, Middle East, and Europe.
Turnkey Project Setup
We provide end-to-end guidance: from factory layout design, raw material sourcing, and installation to operator training.
Unique Features of Satya Group Machinery
Unique Cam Technology
Heat-treated, micrometer-precision cam systems ensure flawless loop formation, reduce yarn breakage, and enable continuous high-speed running.
Stop-Motion Sensors
Electronic automated sensors stop the machine instantly on yarn break, preventing defects and saving valuable raw material during production.
Genuine Spare Parts
We manufacture genuine machine spare parts in-house, ensuring fast service, immediate replacements, and minimal factory downtime.

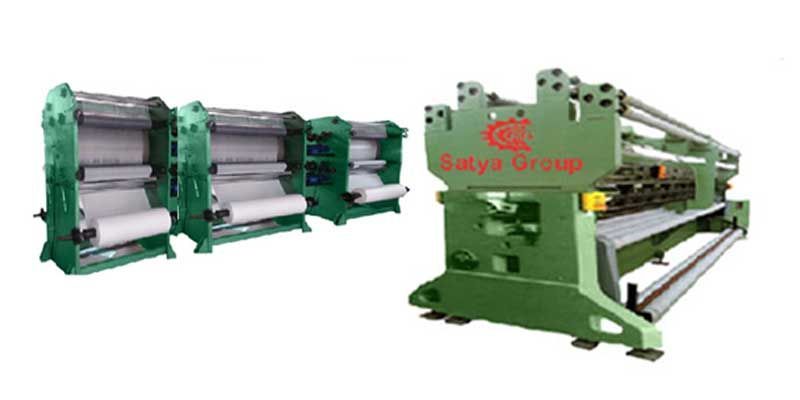

In-Depth Machine Component Details
Our Raschel Warp Knitting machines are engineered with precision parts to ensure continuous running at 500 - 600 RPM without breakdown.
High-Precision Cam System
Oil-bath lubricated cam mechanism ensures smooth latch needle movement, minimizing vibration at high speeds.
VFD Inverter Control
Features advanced variable frequency drive (VFD) for seamless speed adjustment and power-saving motor control.
Let-off & Take-up Roller
Automated yarn tension control from beams and synchronized take-up winding for uniform, tight net rolls.
Laser Stop Motion
Infrared electronic sensors instantly halt the machine upon yarn breakage, ensuring zero fabric defect.
Technical Specifications
Our high-speed warp knitting machines are designed specifically for HDPE monofilament and flat tape yarns.
| Machine Type | Single Needle-Bar Raschel Warp Knitting Machine |
| Working Width | Up to 4300 mm (Customizable depending on requirement) |
| Operating Speed | 500 - 600 RPM (High-Speed Continuous Output) |
| Production Capacity | 200 kg to 300 kg per day (depending on net density) |
| Motor Power Requirements | 18 HP to 32 HP (Energy Efficient Drive) |
| Shade Density Capability | 30%, 50%, 75%, 90% to 95% shade nets |
| Raw Material Support | HDPE Monofilament yarn, Flat Tape wire, Polyester |
| Warranty & Support | 12 Months Warranty + Lifetime Service APC |
Production Capacity & Output Guide
The daily production capacity of the Agro Shade Net Machine depends on the GSM (Grams per Square Meter) and shading percentage. Standard estimate for a 24-hour shift:
| Shading (%) | Approximate GSM | Est. Output (Kg / 24 Hrs) | Common Application |
|---|---|---|---|
| 30% - 40% | 40 - 50 GSM | 150 - 180 Kg | Nursery & Greenhouses |
| 50% - 60% | 60 - 80 GSM | 180 - 220 Kg | Agriculture & Vegetable Farming |
| 75% - 85% | 90 - 120 GSM | 220 - 260 Kg | Poultry Farms & Terrace Gardens |
| 90% - 95% | 150 - 200 GSM | 260 - 320 Kg | Car Parking & Construction Safety |
* Note: Actual production may vary slightly based on raw material quality, operator efficiency, and yarn thickness (Denier).
Applications of Nets Produced
Our versatile agro shade net machine can manufacture a wide variety of netting products by changing cam and threading patterns, helping you target multiple industries.
Greenhouses
Crop protection shading
Anti-Hail Nets
Weather protection
Nursery Shading
50% to 75% density
Anti-Insect Nets
Safe pest control
Safety Nets
Construction building
Car Parking
90% to 95% density
Scaffolding
Enclosure netting
Fence Netting
Privacy & Boundaries
Frequently Asked Questions (FAQs)
We are the only company in India manufacturing authentic Shade Net Machines. We sell only brand-new, in-house fabricated units. Beware of unauthorized sellers offering counterfeit or low-quality machines—it can ruin your business efficiency and reputation.
Ready to Setup Your Plant?
Contact Satya Group today for a free consultation, machine layout plans, and the best factory-direct quotation.
